MAIN CHARACTERISTICS

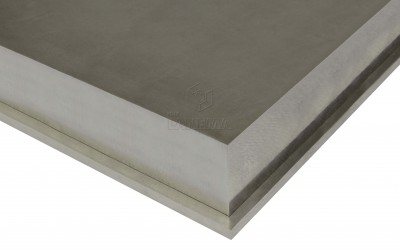

- High strength aluminum plates
- Very good dimensional stability
- Low internal stress
- Good weldability
- Good corrosion resistance
AW 7021
This aluminium is produced from AW 7021 "Cast" obtained by casting process. It fills a gap between medium and high resistance alloys, the latter being in many cases undervalued. It is characterized by a very low microporous homogeneous structure, excellent machinability and high resistance.
Chemical Composition (% Weight)
| Elements | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| Min | - | - | - | - | 1.2 | - | 5 | - | 0.08 | - |
| Max | 0.25 | 0.4 | 0.25 | 0.1 | 1.8 | 0.05 | 6 | 0.1 | 0.18 | Resto |
Set up your product
| Format | |
| Color | |
| Measure | |
| Measure 1 | |
| Measure 2 | |
| Length | Val. Máx.: |
| Width | Val. Máx.: |
| Lote | |
| Quantity | |
| Result: | |
Polishing
Machinability
Weldability
Electrical/Thermal
Conductivity
120-130 HB
Brinell Hardness
2.78
Density
APPLICATIONS
- Manufacture of tools, molds and patterns
- Injection Molds
- Construction of machinery and equipment
- Base plates, table tops and mounting plates
